HIS'3D^®Module

HISarc

implements the interface between HIS'3D^® and ArcView™. This interface has been implemented easy-to-use, so that even ArcView novices can work with it. The controlling of all examinations is done out of HIS'3D^® . ArcView is integrated transparently. The experienced ArcView user can use the automatically created ArcView projects as base for further formating.

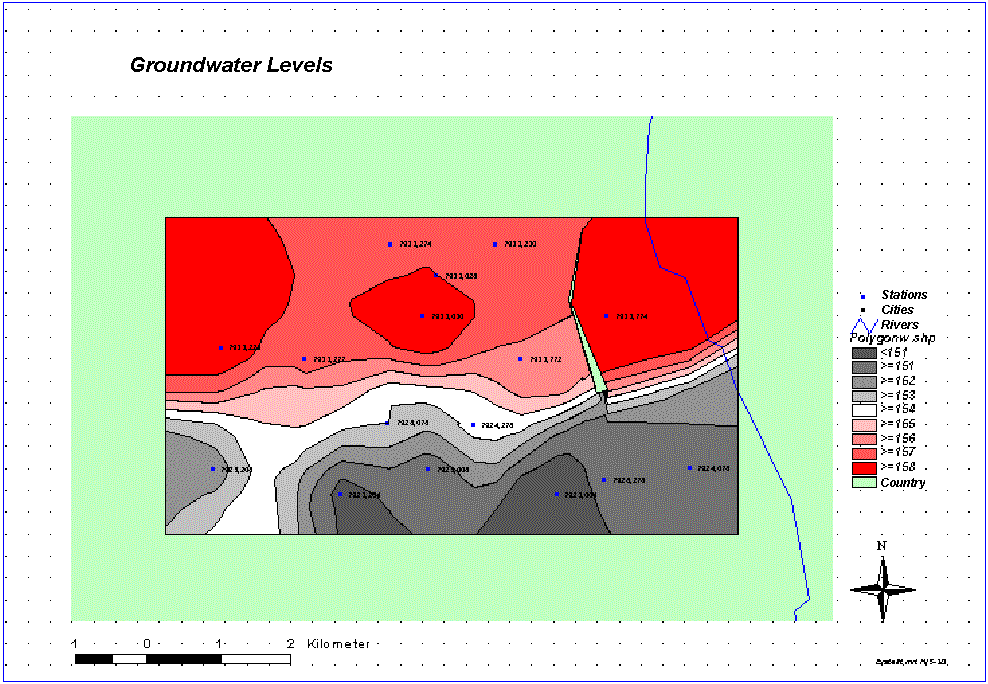

• Sitemap of stations: After selecting a map measurement stations of HIS'3D^® are drawn directly in it - with maps from different sources (e.g. from ArcInfo™). The presentation optionally uses inscriptions of the stations and automatically selected symbols, both based on station data in the database. The ArcView layout is created automatically (with a legend).

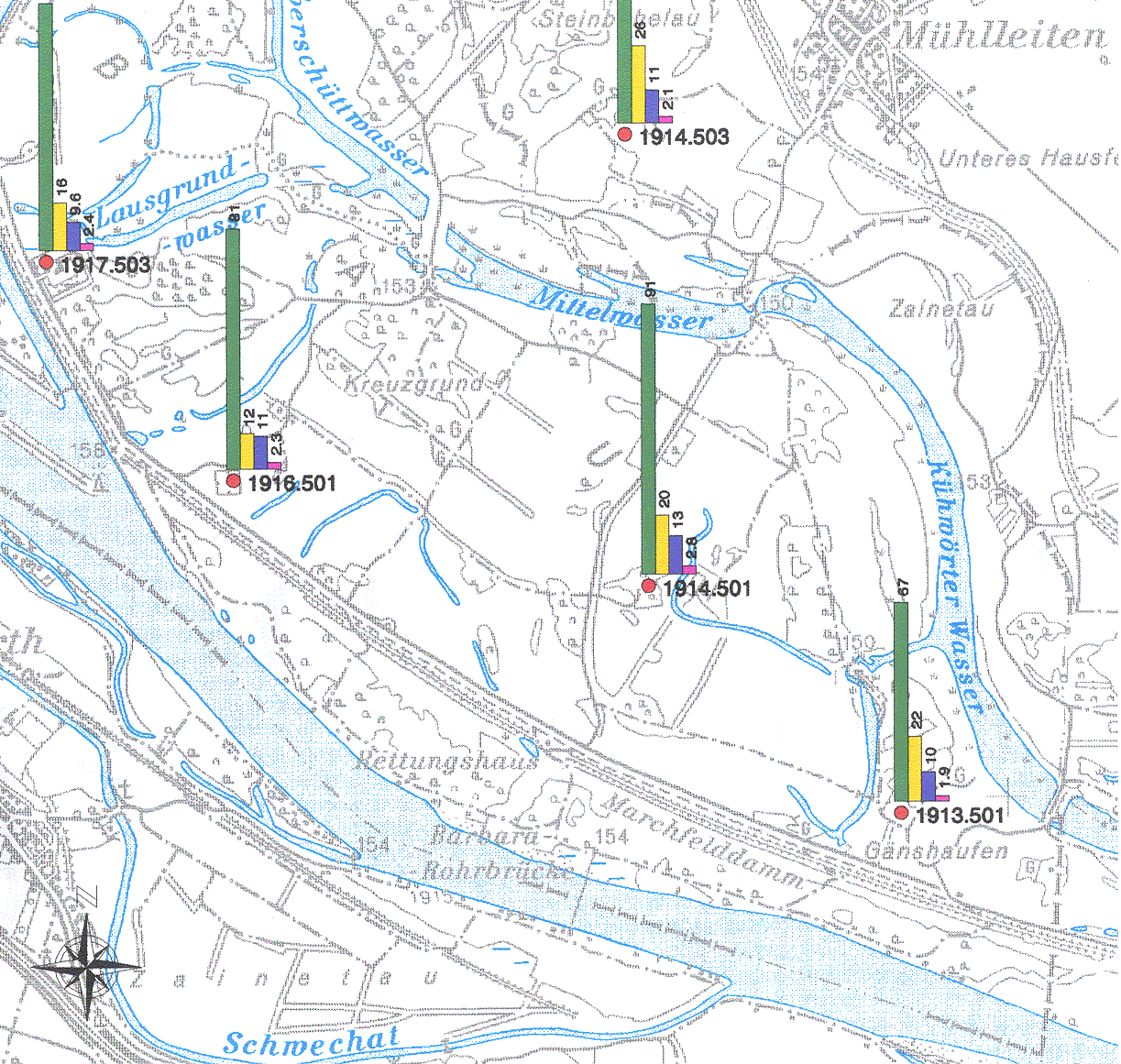

• Value presentations: Values are assigned to stations as bargraphs or pie charts, using different parameters over one time interval or one parameter over several intervals or a combination of both.


• Requests out of ArcView: using new buttons and menus in ArcView the user can directly access station and measurement information of the environmental database: he selects a station graphically and access data per a button press.


HISoline

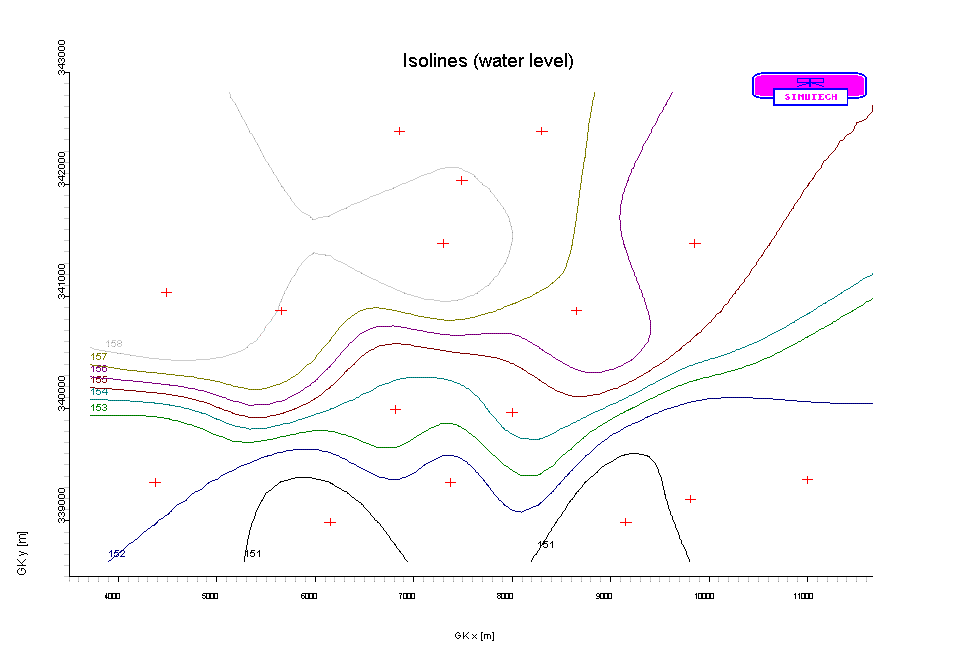

is the isoline module for HIS'3D^® .

• It offers possibilities to create isolines for different types of values:
  • over any parameter (e.g. water level, chemical parameters, physical parameters)
  • mean, minimum, maximum over time interval or for a singular environment report
• Features:
  • isolines (from, to, distance)
  • variogram
  • surface (choosable net)
• The export is available as
  • export file
  • HIS'3D^® -graphics
  • in ArcView on a map.
• for hydrographical evaluations:
  • fixlines: are predefined profiles, whichs height values ares used a fixed values during computation
  • isolators: area areas without values (e.g. retention walls near to rivers; geological slips); with exact computation on the border lines

Use the info-form to request further information.
